Although I haven’t posted anything here lately, I’ve spent most of the summer time completing the implementation of the engine for Conductor 2. The new kotlin engine is working well, with a suitable battery of unit tests, and I have a functional simulator to exercise the engine before I try it at the museum. I also converted the latest Conductor 1 script to the new Conductor 2 DSL. It’s all in the bitbucket repo under the dev branch:

• conductor/engine2k/src: The new Kotlin-scripting based engine.

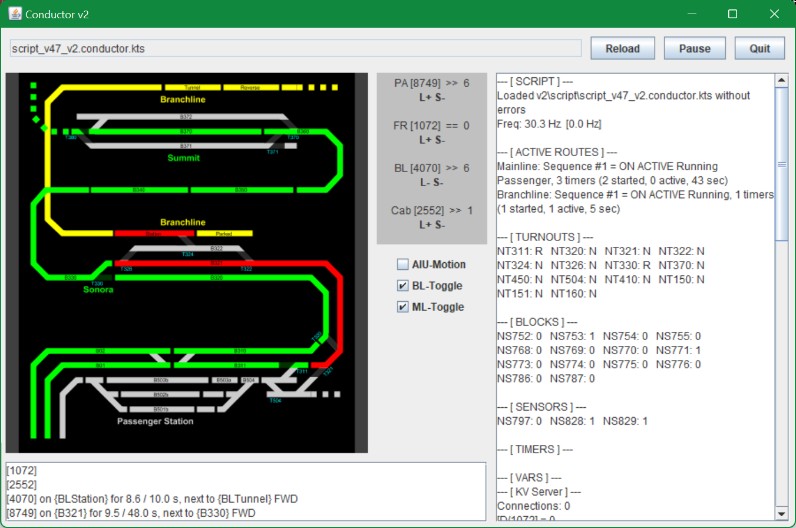

• conductor/simul2k/src: The new simulator.

We can compare the Conductor 1 vs Conductor 2 scripts right here:

• script_v4.txt: Script v47 using Conductor 1 ANTLR-based language.
• script_v47_v2.conductor.kts: Script v47 using Conductor Kotlin-based language.

Todo list so far:

• ✅ Block sequence management.
• ✅ Implement regular timers.
• ✅ Implement after-timers.
• ✅ Remove the need for “reset timer” that can’t work in 2k.
• ✅ Simulator: display sensors, blocks, turnouts + simulation toggle.
• ✅ Simulator: display engines + location on track (current node + direction).
• ✅ Simulation: Simulate engine movement.
• ✅ Implement Throttle to JMRI. Daggerize.
• ✅ Implement Sensors / blocks. Daggerize.
• ✅ Blocks are a copy-paste of Sensors right now.
• ✅ Implement Turnouts. Daggerize.
• ✅ Support error recovery mode.
• ✅ Store current state / reload.
• ✅ Compute start state + recovery method.
• ✅ Throttle customization for light, bell, sound. Done via functions for now.
• ❌ Timeout detection (from node to node).
• ❌ “Flaky sensor” detection and compensation.

Actual deployment:

• ✅ Integration with JrmiProvider.
• ✅ Throttles, Sensors, Turnouts.
• ✅ KV Server.
• ✅ Export variables in onExecHandle.
• ✅ ZeroConf advertising.
• ✅ JSON Server.
• ✅ GA export.

There are only two items left to complete on the list. More importantly, this is now ready for actual trial at the museum.
