The Randall Museum in San Francisco hosts a large HO-scale model train layout. Created by the Golden Gate Model Railroad Club starting in 1961, the layout was donated to the Museum in 2015. Since then I have started automatizing trains running on the layout. I am also the layout maintainer. This blog describes various updates on the Randall project and I maintain a separate blog for all my electronics not directly related to Randall.

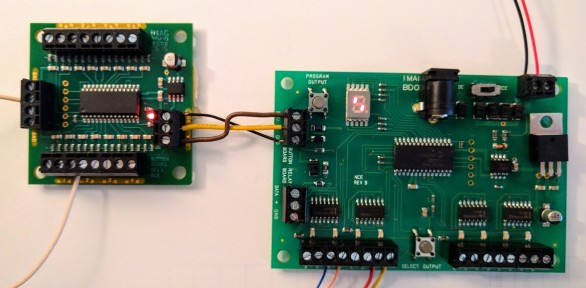

2017-01-04 - NCE Button Board

Category Randall

After talking to tech support at NCE: the Button Board has a bug and they don't support non-momentary switches like the rotary toggles we use. It MUST be momentary.

<cold shower>

Proposed hack to verify: add a push button on the common ground of leading to the rotary toggles. Operation mode is thus turn a toggle then push the button to simulate a momentary push.

Longer term: my first reaction is to just simulate the Button Board using an Arduino. Must take 16 digital inputs and emit the proper 2-bytes sequence over serial.

Or realize that the Button Board uses a PIC16. It’s no different from an Arduino and I can reprogram it.

Uses PIC16F1936, 28 pin package.

Datasheet: http://ww1.microchip.com/downloads/en/DeviceDoc/41364E.pdf

The board has a 6-holes "headers" which should be the PIC16's ICSP (In-Circuit Serial Programming, chapter 28, page 361). The 6 pins, from left to right, when holding the PIC16 with 1 at the top-left:

  • 1 = Pin 1 (Vpp / !MCLR)
  • 2 = Header 1 with a 10k resistor to Pin 20 (Vdd)
  • 3 = GND / Pin 8 (Vss)
  • 4 = Pin 28 (ICSPDATA)
  • 5 = Pin 27 (ICSPCLK)
  • 6 = Not Connected

Note: Vss is the ground ref, Vdd is the positive supply, Vpp is the programming voltage.

Vdd max is +5.5V and Vpp max is +9V.

There's something called a "Pickit2" to easily connect and program using directly that connector.

Another option is to use an Arduino as a PIC programmer.

⇒ Must use a PicKit3 for this version of the PIC16F.

The PIC16F I/Os are used as such:

RA0 = Turnout 1 N

RA1 = Turnout 1 R

RA2 = Turnout 2 N

RA3 = Turnout 2 R

RA4 = Turnout 3 N

RA5 = Turnout 3 R

RA7 = Turnout 4 R

RA6 = Turnout 4 N

RB0 = Turnout 5 N

RB1 = Turnout 5 R

RB2 = Turnout 6 N

RB3 = Turnout 6 R

RB4 = Turnout 7 N

RB5 = Turnout 7 R

RB6 / ICSPCLK = ICSP Pin 5 -- don't use

RB7 / ICSPDATA = ICSP Pin 4 -- don't use

RC0 = Turnout 8 R

RC1 = Turnout 8 N

RC2 = Not connected?

RC3 = Onboard LED via resistor

RC4 = Not connected?

RC5 = Not connected?

RC6 / TX = DATA via resistor

RC7 / RX = Shunted to RC6

I didn't see anything obvious used for RC2, RC4 and RC5.

It's quite odd that RC6 (TX) and RC7 (RX) are connected together to the DATA pin of the terminal block.

MPLAB X : can read from the device but only shows zeroes. Does not dissemble.

MPLAB 8 : connects to the PicKit3 but fails to read from it. Indicates "Target ID" is 0x0000.

I think they used the read-protection (to avoid exactly what I’m doing; I’m not blaming them, I’d do the same if I were running a business), so I can reflash the whole thing but I can’t just get the existing program and disassemble it. Tried to ask nicely for the source to NCE but that went to /dev/null...
